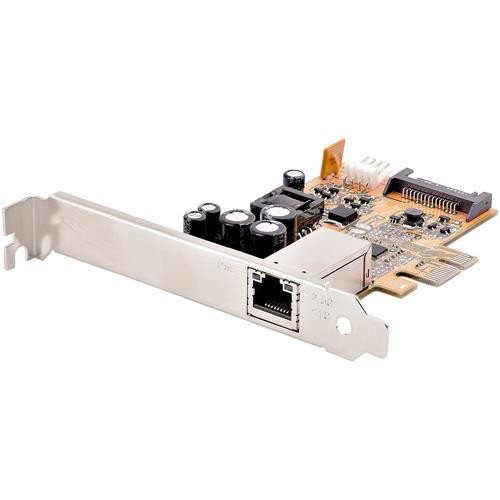

StarTech.com Carte Réseau PCI Express x1 - Carte Ethernet PCIe avec RJ45, 30W 802.3at PoE LAN NIC pour Ordinateur de Bureau/Serveurs - Adaptateur Réseau 2.5GB avec Support à Profil Bas, NBaseT, Windows/Linux - ST1000PEXPSE

StarTech.com Carte Réseau PCI Express x1 - Carte Ethernet PCIe avec RJ45, 30W 802.3at PoE LAN NIC pour Ordinateur de Bureau/Serveurs - Adaptateur Réseau 2.5GB avec Support à Profil Bas, NBaseT, Windows/Linux - ST1000PEXPSE
StarTech.com
SKU :
ST1000PEXPSE - StarTech.com
Disponibilité :
Appelez/call 1-844-578-1008
$161.99
Largeur :
1.50 (pouces)
Hauteur :
5.70 (pouces)
Profondeur :
8.10 (pouces)

Contactez-nous !

Bien choisir cette référence

Faites correspondre la connexion hôte à votre machine et l’interface réseau au câblage ou au module utilisé. Pour une carte interne, vérifiez l’emplacement disponible, le profil du boîtier et les pilotes du système. Le débit annoncé reste limité par le port hôte, le commutateur et le reste de la liaison ; un adaptateur ne peut pas accélérer un accès Internet déjà limitant.

Interface de l’hôtePCI Express
InterfaceEthernet
Débit de transfert des données maximum2500 Mbit/s
Nombre de port ethernet LAN (RJ-45)1
InterneOui
Comparer d’autres références de cette famille

Comparez ces caractéristiques ; ce tableau ne garantit pas la compatibilité avec votre machine.

RéférenceDifférences à examiner
ST2000SPEXIInterface de l’hôte : PCI Express · Interface : Ethernet · Débit de transfert des données maximum : 2000 Mbit/s · Nombre de port ethernet LAN (RJ-45) : 2 · Interne : Oui
PR15GR-NETWORK-CARDInterface de l’hôte : PCI Express · Interface : Ethernet · Débit de transfert des données maximum : 5000 Mbit/s · Nombre de port ethernet LAN (RJ-45) : 1 · Interne : Oui
ST4000SPEXIInterface de l’hôte : PCI Express · Interface : Ethernet · Débit de transfert des données maximum : 2000 Mbit/s · Nombre de port ethernet LAN (RJ-45) : 4 · Interne : Oui

Valeurs techniques : fiche de cette référence. Principes de choix : StarTech.com — sélection des émetteurs-récepteurs.

Before you choose this reference

Match the host connection to your computer and the network interface to the cable or module. For an internal card, check the available slot, chassis profile and system drivers. Listed rate remains limited by host port, switch and the rest of the link; an adapter cannot increase an already limiting Internet connection.

Host interfacePCI Express
Network interfaceEthernet
Listed maximum rate2500 Mbit/s
Ethernet ports1
Internal deviceYes
Compare other references in this family

Compare these specifications; this is not a machine-specific compatibility guarantee.

ReferenceDifferences to check
ST2000SPEXIHost interface : PCI Express · Network interface : Ethernet · Listed maximum rate : 2000 Mbit/s · Ethernet ports : 2 · Internal device : Oui
PR15GR-NETWORK-CARDHost interface : PCI Express · Network interface : Ethernet · Listed maximum rate : 5000 Mbit/s · Ethernet ports : 1 · Internal device : Oui
ST4000SPEXIHost interface : PCI Express · Network interface : Ethernet · Listed maximum rate : 2000 Mbit/s · Ethernet ports : 4 · Internal device : Oui

Specification values: this reference’s technical sheet. Selection guidance: StarTech.com — sélection des émetteurs-récepteurs.

StarTech.com Carte Réseau PCI Express x1 - Carte Ethernet PCIe avec RJ45, 30W 802.3at PoE LAN NIC pour Ordinateur de Bureau/Serveurs - Adaptateur Réseau 2.5GB avec Support à Profil Bas, NBaseT, Windows/Linux, Interne, Avec fil, PCI Express, Ethernet, 2500 Mbit/s

Caractéristiques

Connectivité
Technologie de connectivitéAvec fil
Interface de l'hôtePCI Express
InterfaceEthernet
Nombre de port ethernet LAN (RJ-45)1
Power over Ethernet (PoE) Nombre de ports1
PCI version2.1
Facteur de forme de la carte PCIHauteur totale (profil bas)



Réseau
Débit de transfert des données maximum2500 Mbit/s
Standards réseauIEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Ethernet/LANOui
Type d'interface Ethernet2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
LAN Ethernet : taux de transfert des données10,100,1000,2500 Mbit/s
Wake-on-LAN prêtOui
Auto MDIX IEEEOui
Full duplexOui
Support de trames étendues (Jumbo Frames)Oui
Trames géantes16000
Marquage VLANOui
Distance de fonctionnement maximum100 m



Design
composant pourPC/serveur
InterneOui
Jeu de composantsRealtek RTL8125B
VoyantsOui



Puissance
Tension de sortie48 V



Configuration minimale du système
Prise en charge du système d'exploitation WindowsWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Prise en charge du système d'exploitation LinuxOui
Prise en charge du système d'exploitation serveurWindows Server 2008 R2, Windows Server 2012 R2, Windows Server 2019



Conditions environnementales
Température d'opération0 - 55 °C
Température hors fonctionnement-40 - 70 °C
Humidité relative de fonctionnement (H-H)5 - 95%



Durabilité
Conformité à la durabilitéOui



Poids et dimensions
Largeur63 mm
Profondeur95 mm
Hauteur15 mm
Poids220 g



Informations sur l'emballage
Largeur du colis144 mm
Profondeur du colis212 mm
Hauteur du colis41 mm
Poids du paquet220 g



Contenu de l'emballage
crochets d'élévation inclusOui
Guide d'installation rapideOui



Détails techniques
Certificats de conformitéCE, RoHS



Données logistiques
Largeur du casier principal (externe)537 mm
Longueur du casier principal (externe)454 mm
Hauteur du casier principal (externe)345 mm
Produit par casier principal (externe)50 pièce(s)
