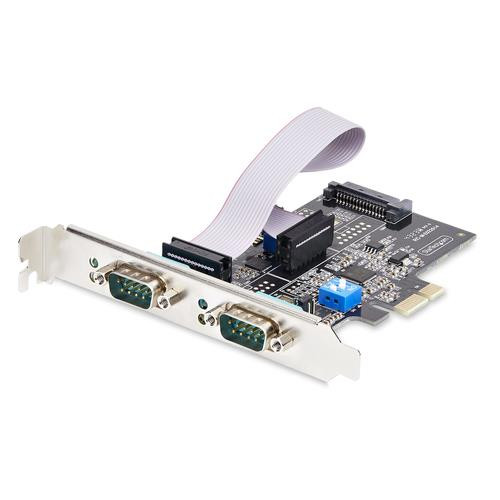

StarTech.com Carte Série PCI Express à 2 Ports - Adaptateur/Carte PCIe à 2 Ports vers RS232/RS422/RS485 (DB9), Support Bas-Profil Inclus, UART 16C1050, Windows/Linux, Conformité TAA - Protection ESD de niveau 4 - 2S232422485-PC-CARD

StarTech.com Carte Série PCI Express à 2 Ports - Adaptateur/Carte PCIe à 2 Ports vers RS232/RS422/RS485 (DB9), Support Bas-Profil Inclus, UART 16C1050, Windows/Linux, Conformité TAA - Protection ESD de niveau 4 - 2S232422485-PC-CARD
StarTech.com
SKU :
2S232422485-PC-CARD - StarTech.com
Disponibilité :
Appelez/call 1-844-578-1008
$133.99
Largeur :
5.60 (pouces)
Hauteur :
1.20 (pouces)
Profondeur :
6.70 (pouces)

Contactez-nous !

Bien choisir cette référence

Cette référence raccorde PCIe à une interface Série. Vérifiez le connecteur hôte, le pilote et, pour une carte interne, le format du boîtier et l’emplacement disponible. Pour une liaison série, RS-232, RS-422 et RS-485 ne sont pas interchangeables par le seul connecteur ; le câblage et les paramètres de l’appareil doivent aussi correspondre.

Interface de l'hôtePCIe
Interface de sortieSérie
Nombre de ports série2
Type d'interface sérieRS-232/422/485
InterneOui

Indiqué comme inclus : Câbles inclus : Câble ruban

Comparer d’autres références de cette famille

Comparez ces caractéristiques ; ce tableau ne garantit pas la compatibilité avec votre machine.

RéférenceDifférences à examiner
PEX1S953LPInterface de l'hôte : PCIe · Interface de sortie : Série · Nombre de ports série : 1 · Type d'interface série : RS-232 · Interne : Oui
PEX4S953LPInterface de l'hôte : PCIe · Interface de sortie : Série · Interne : Oui
PEX2S953Interface de l'hôte : PCIe · Interface de sortie : Série · Nombre de ports série : 2 · Type d'interface série : RS-232 · Interne : Oui

Valeurs techniques : fiche de cette référence. Principes de choix : USB-IF — capacités des câbles et connecteurs.

Before you choose this reference

This reference connects PCIe to Série. Check host connector, driver and, for an internal card, chassis form factor and available slot. On serial links, RS-232, RS-422 and RS-485 are not interchangeable based on connector shape; wiring and device settings must also match.

Host interfacePCIe
Output interfaceSérie
Serial ports2
Serial interface standardRS-232/422/485
Internal cardYes

Listed as included: Included cables : Câble ruban

Compare other references in this family

Compare these specifications; this is not a machine-specific compatibility guarantee.

ReferenceDifferences to check
PEX1S953LPHost interface : PCIe · Output interface : Série · Serial ports : 1 · Serial interface standard : RS-232 · Internal card : Oui
PEX4S953LPHost interface : PCIe · Output interface : Série · Internal card : Oui
PEX2S953Host interface : PCIe · Output interface : Série · Serial ports : 2 · Serial interface standard : RS-232 · Internal card : Oui

Specification values: this reference’s technical sheet. Selection guidance: USB-IF — capacités des câbles et connecteurs.

StarTech.com Carte Série PCI Express à 2 Ports - Adaptateur/Carte PCIe à 2 Ports vers RS232/RS422/RS485 (DB9), Support Bas-Profil Inclus, UART 16C1050, Windows/Linux, Conformité TAA - Protection ESD de niveau 4, PCIe, Série, PCIe 2.0, RS-232/422/485, Noir, ASIX - AX99100

Caractéristiques

Connectivité
Interface de l'hôtePCIe
Interface de sortieSérie
Standard de carte d’extensionPCIe 2.0
Nombre de ports série2
Type d'interface sérieRS-232/422/485



Design
InterneOui
Couleur du produitNoir



Caractéristiques
Jeu de composantsASIX - AX99100
Vitesse de transmission921,6 Kbit/s
FIFO (Premier entré, premier sorti)256 o
Données bits5, 6, 7, 8, 9
Bits d'arrêt1, 1.5, 2
Assistance contrôle des fluxOui
Bit de paritéPair, Marque, Non, Impair, Espace



Conditions environnementales
Température d'opération0 - 70 °C
Température hors fonctionnement-20 - 80 °C
Humidité relative de fonctionnement (H-H)20 - 80%



Configuration minimale du système
Prise en charge du système d'exploitation WindowsWindows 11 Enterprise x64, Windows 7 Professional x64, Windows 8.1 Pro, Windows 10, Windows 11 Home, Windows 7 Starter, Windows 8.1 Pro x64, Windows 10 Education, Windows 11 Pro, Windows 7 Starter x64, Windows 8.1 x64, Windows 10 Education x64, Windows 11 x64, Windows 7 Ultimate, Windows 10 Enterprise, Windows 7 Ultimate x64, Windows 10 Enterprise x64, Windows 7 x64, Windows 10 Home, Windows 8, Windows 10 Home x64, Windows 7, Windows 8 Enterprise, Windows 10 IOT Core, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows 10 IoT Enterprise, Windows 7 Enterprise x64, Windows 8 Pro, Windows 10 Pro, Windows 7 Home Basic, Windows 8 Pro x64, Windows 10 Pro x64, Windows 7 Home Basic x64, Windows 8 x64, Windows 10 x64, Windows 7 Home Premium, Windows 8.1, Windows 11, Windows 7 Home Premium x64, Windows 8.1 Enterprise, Windows 11 Enterprise, Windows 7 Professional, Windows 8.1 Enterprise x64
Prise en charge du système d'exploitation LinuxOui
Prise en charge du système d'exploitation serveurWindows Server 2016, Windows Server 2019, Windows Server 2022



Détails techniques
Conformité à la durabilitéOui
Certificats de conformitéRoHS, Loi sur les accords commerciaux (TAA)



Poids et dimensions
Largeur102 mm
Profondeur105 mm
Hauteur16 mm
Poids57 g



Informations sur l'emballage
Câbles inclusCâble ruban
crochets d'élévation inclusOui
Guide d'installation rapideOui
Largeur du colis144 mm
Profondeur du colis174 mm
Hauteur du colis32 mm
Poids du paquet147,6 g



Données logistiques
Produit par casier principal (externe)75 pièce(s)
Largeur du casier principal (externe)685 mm
Longueur du casier principal (externe)355 mm
Hauteur du casier principal (externe)310 mm



Autres caractéristiques
Protection contre les décharges électrostatiques (DES)15 kV



MPN:
2S232422485-PC-CARD
