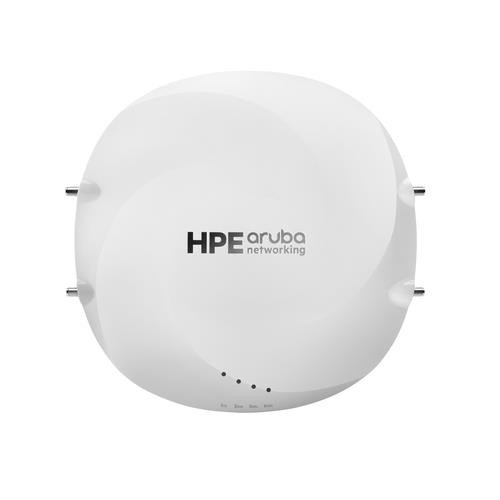

HPE Aruba Networking AP-634 (RW) Tri-radio 2x2:2 Wi-Fi 6E External Antennas Campus AP, 2,4 GHz, 5 GHz, 6 GHz, 2500 Mbit/s, AES, TKIP, WPA, WPA2-Enterprise, WPA2-Personal, WPA3, WPA3-Enterprise, 2500,5000 Mbit/s
Caractéristiques
| Caractéristiques | |
| 2,4 GHz | Oui |
| 5 GHz | Oui |
| 6 GHz | Oui |
| Débit de transfert des données maximum | 2500 Mbit/s |
| Débit de transfert des données maximum (2,4 GHz) | 1200 Mbit/s |
| Débit de transfert des données maximum (5 GHz) | 2500 Mbit/s |
| Taux de transfert de données maximum (6 GHz) | 1200 Mbit/s |
| LAN Ethernet : taux de transfert des données | 2500,5000 Mbit/s |
| Bande de fréquence | 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 3.9 Gbps |
| Standards réseau | IEEE 802.11ax, IEEE 802.11mc |
| Bluetooth | Oui |
| MIMO (entrées multiples, sorties multiples) | Oui |
| Prise en charge MACsec | Non |
| Sécurité | |
| Algorithme de sécurité soutenu | AES, TKIP, WPA, WPA2-Enterprise, WPA2-Personal, WPA3, WPA3-Enterprise |
| Caractéristiques de gestion | |
| Gestion des points d'accès | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
| Connectivité | |
| Nombre de port ethernet LAN (RJ-45) | 1 |
| Puissance | |
| Connexion Ethernet, supportant l'alimentation via ce port (PoE) | Oui |
| Design | |
| Positionnement | Plafond, Poteau, Mur |
| Couleur du produit | Blanc |
| Utilisation recommandée | Intérieure |
| Antenne | |
| Type d'antenne | Externe |
| Type de connecteur Antenne | RP-SMA |
| représentation / réalisation | |
| Systèmes d'exploitation compatibles | AP-634 (excluding 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.11.2.0, HPE Aruba Networking Wireless Operating System 10.6.0.0 AP-634 (including 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.12.0.0, HPE Aruba Networking Wireless Operating System 10.7.0.03 AP-635: HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.9.0.0, HPE Aruba Networking Wireless Operating System 10.4.0.0 Standard power product class operation of the AP-634 is only supported on HPE Aruba Networking OS 10.7.0.0 and later deployments and HPE Aruba Networking OS 8.12.0.0 and later deployments that include a HPE Aruba Networking Mobility Conductor. Standard power operation is not supported on Instant OS deployments or 8.x HPE Aruba Networking OS deployments without a HPE Aruba Networking Mobility Conductor. |
| Certificat | |
| Certificats de conformité | Federal Communications Commission (FCC), ISED, CE, Directive basse tension (DBT) |
| Certification | UL2043 plenum rating Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2 and WPA3—Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi Agile Multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 5) |
| Poids et dimensions | |
| Largeur | 220 mm |
| Profondeur | 50 mm |
| Hauteur | 220 mm |
| Poids | 1,3 kg |
| Autres caractéristiques | |
| Ports E/S | E0, E1: Two Ethernet wired network ports (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot |
| Poids (impérial) | 1,3 kg (2.86 kg) |
- MPN:
- S1G49A
